Wheat Milling

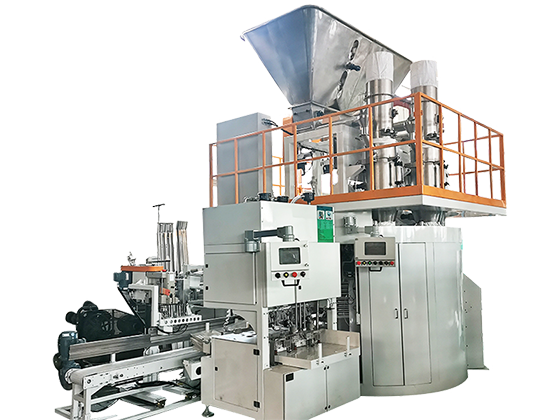

Eight-Station Fully Automatic Packing Machine
Suitable for powder materials such as wheat flour, corn flour, and starch.
Featuring an integrated system for bagging, filling, and sealing, the machine delivers 800–1000 bags/hour with ±0.2% accuracy.
SHARE :
Product Features
Adopts an intelligent mechanical system integrating bag picking, bag placing, filling, conveying, sewing, and dust control into a continuous process. The machine features a compact structure and a triple-scale parallel feeding system, meeting high-speed filling requirements while allowing sufficient feeding time to ensure weighing accuracy, thereby achieving flexibility, high speed, and high precision.
Integrates high speed with high accuracy to achieve truly efficient operation;
Equipped with a bag stretching and shaping mechanism to ensure consistent bag opening during filling;
Optimized bag handling system enables reliable bag picking, with a qualification rate up to 99.8%;
Advanced bag opening and separation system supports fully automatic bag feeding, with a stable bag placing success rate above 99.8%;
Customizable based on material characteristics and user requirements, with adjustable filling weight within the preset range for flexible operation;
Enclosed filling chamber with a complete dust collection pipeline effectively controls dust emissions and improves the working environment.
Contact us for questions of our company, products or services
Learn More
Technical Specifications
| Equipment Name | Eight-Station Fully Automatic Packing Machine |
| Overall Dimensions | 5438mm×2937mmx4909mm |
| Packaging Type | Woven bags |
| Bag Size | 25~50kg |
| Total Installed Power | 28 kW (Operating Power: approx. 15 kW) |
| Power Supply | 380 V, 50 Hz, three-phase five-wire system |
| Air Supply | Pressure P ≥ 0.6 MPa; Air consumption Q ≥ 27 m³/h |
| Weighing Accuracy | FS ±2‰ (dynamic) |
| Filling Capacity | 800–1000 bags/hour |
| Ambient Temperature | -10°C to 40°C |
| Dust Collection Air Volume | 4500 m3/h |
